Hot And Cold Water
Heating Recirc Pump
Inlet/Outlet: 2" x 2"
Body length: 180mm
This pump is engineered to deliver exceptional performance with a flow rate of up to 4.2m³/h and a head of up to 7 meters, making it ideal for a variety of heating applications
Applications:
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Technical Specifications:
Flow Rate: Up to 4.2 m³/h
Head: Up to 7 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

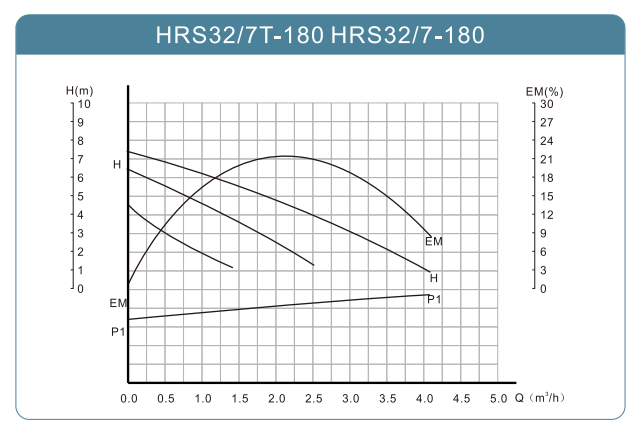

Performance Curves :
Technical Data
| Model | Power | Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (W) | (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) | |
| HRS32/7T-180 | 125/93/67 | 4.2/3.4/2.2 | 7/6.5/4.5 | ★ | ★ | ★ | ★ | ★ | ★ | 180 | 123 | 145 | 2" | 3.2 |
| HRS32/7G-180 | 3.2 | |||||||||||||
Installation Dimension :
